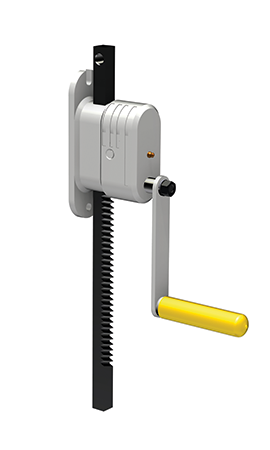

Toothed rack winch with worm gear, self-locking - Typ 11

... available with hand crank

Unser Stockwinde mit Sicherheitskurbel 101.015-0350
suitable for tension and pressure
crank handle fold away
self-locking


The toothed rack with worm gear were constructed for lifting, lowering, moving and fixing of construction parts, machines, ventilation parts etc. They need little space by her compact construction. Furthermore they have an extremely easily possible, self-locking worm gear which is interpreted for tensile and pressure suitable.

You still have questions or special requests? Take your chance and call our experienced Service team under the number 02191 576001 or write us an E-Mail.




    Article-no. Lifting force Lift (H) Sizes in mm Weight
    in t in mm A A1 B B1 C C1

    C2

    		 D E E1 E2 E3 K in kg
    winch with crank handle + crank handle fold away 0,25 t
    411.025-0400.01 0,25 400 185+H 268 20 20 20 38 13 11 130 110 170 200 160 5,4
    411.025-0600.01 0,25 600 185+H 268 20 20 20 38 13 11 130 110 170 200 160 5,9
    411.025-1000.01 0,25 1000 185+H 268 20 20 20 38 13 11 130 110 170 200 160 6,9
    411.025-1200.01 0,25 1200 185+H 268 20 20 20 38 13 11 130 110 170 200 160 7,4
    winch with crank handle + crank handle fold away 0,5 t
    411.050-0400.01 0,5 400 185+H 268 20 25 20 35 13 11 130 110 170 200 160 6,5
    411.050-0600.01 0,5 600 185+H 268 20 25 20 35 13 11 130 110 170 200 160 7,0
    411.050-1000.01 0,5 1000 185+H 268 20 25 20 35 13 11 130 110 170 200 160 7,5
    winch with crank handle + crank handle fold away 1 t
    410.010-0600.01 1 600+60 200+H 225 35 25 180 140   16,5 125 140 100   200 9,0
    410.010-0800.01 1 800+60 200+H 225 35 25 180 140   16,5 125 140 100   200 11,0
    410.010-1000.01 1 1000+60 200+H 225 35 25 180 140   16,5 125 140 100   200 13,0
