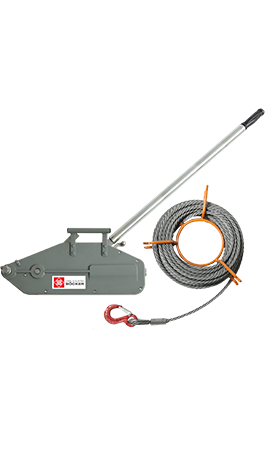

Wire rope hoist
... Lifting and pulling devices varied applicable
|
|
 |
compact construction |
|
short lever barrel |
|
robust sheet steel execution |
|
precision mechanics |
|
no disturbing handle |
|
easy disassembly |
|
stop pin with special spin-lock |
A varied applicable lifting and pulling device for unlimited rope length. Special clamping-jaws hold on the load in each hight safety. It allows jerk-free lifting and sinking. The wire rope hoist is portably due to its marginal weight. So. It can be used at every desired place. Complete with rope, hook and winch.
|
|
| Article-no. |
Lifting force |
RopeLength |
Tow-cable Ø |
Expenditure |
Sizes in mm |
Weight |
|
in t |
in m |
(Special rope) |
of force in N |
A |
B |
C |
D |
E |
in kg |
| Wire rope hoist |
| 520.080-0430 |
0,8 |
20 |
8,3 |
341 |
426 |
235 |
168 |
60 |
64 |
14 |
| 520.160-0545 |
1,6 |
20 |
11,0 |
400 |
545 |
284 |
190 |
72 |
97 |
26 |
| 520.320-1663 |
3,2 |
10 |
16,0 |
438 |
660 |
325 |
230 |
91 |
116 |
38 |
| 520.320-2663 |
3,2 |
20 |
16,0 |
438 |
660 |
325 |
230 |
91 |
116 |
48 |
-
-
