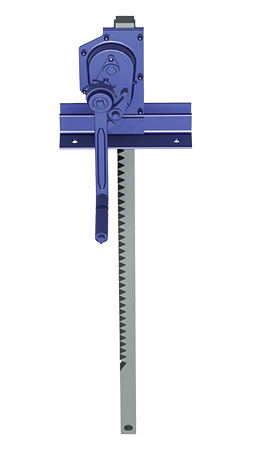

Sluice lifting jack with foot angle -
Typ 40

... available with safety, safety ratchet crank and safety spring crank

Schleusenwinde mit Fußwinkel
tested and manufactured to DIN 7355:1970
suitable for tension and pressure, depending on way of installation
automatic mechanical brake

Our sluice lifting jacks with foot angle were constructed for Opening and closing of gates at the weir. Also used in farming, garage area or plant construction.

They are also deliverable as sluice winch plants with connection axes. Sluice winches can be made in requested custom-built models after drawing or outline also in a galvanized execution.

Just ask our competent team. We are pleased to advise you by phone under the number 02191 57600-1 or write an E-Mail to us.




    Article-no. Lifting force Lift (H) Sizes in mm Weight
    in t in mm A C C1 C2 C3 D D1 E E1 K in kg
    sluice lifting jack with safety crank (Siku)
    140.015-0800.01 1,5 800 1150 260 200 150 100 18 13 50 130 250 14
    140.030-0800.01 3 800 1260 260 200 147 97 22 17 50 130 250 24
    140.050-0800.01 5 800 1280 290 220 158 108 22 18 50 130 250 32
    140.100-0800.01 10 800 1405 400 320 190 130 25 21 65 250 300 53
    sluice lifting jack with safety ratchet crank (Raku)
    240.015-0800.01 1,5 800 1150 260 200 150 100 18 13 50 130 250 14
    240.030-0800.01 3 800 1260 260 200 147 97 22 17 50 130 250 24
    240.050-0800.01 5 800 1280 290 220 158 108 22 18 50 130 250 32
    240.100-0800.01 10 800 1405 400 320 190 130 25 21 65 250 300 53
    sluice lifting jack with safety spring crank (DSK)
    340.015-0800.01 1,5 800 1150 260 200 150 100 18 13 50 130 250 14
    340.030-0800.01 3 800 1260 260 200 147 97 22 17 50 130 250 24
    340.050-0800.01 5 800 1280 290 220 158 108 22 18 50 130 250 32
