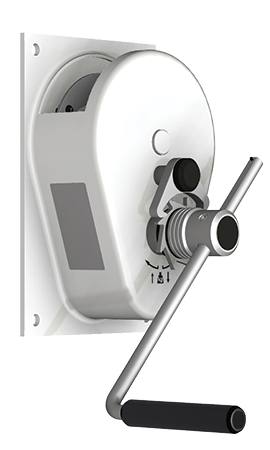

manual winch - lifting winch

Hubwinde

casing grey lacquered (RAL 7044/9005)
sturdy and safety lifting winch
statically safety factor 4
right angular screw-satz-conduction
screw wheel with protective plate
discharge rope on the topside
maintenance-free bearing
adjustable crank 250 / 325 mm with ergonomic synthetic handle
noise-damped load pressure brake with double ratched system
conforms DIN 15020 and EN 13157



    Article-no. Sizes in mm Weight
    A B C D E G H H1 K F L M Ø S Ø O O1 in kg
    manual winch - lifting winch 300 kg safe working loadt
    533.030-0166.01 318 96 128,5 55 86 200 268 300 168 145 25 70 5x21 14 12 10
    manual winch - lifting winch 600 kg safe working load
    533.030-0308.01 318 96 128,5 55 86 200 268 300 168 145 25 60 6x12 14 12 11
    To send you an offer as soon as possible, please fill out the form:

    Details for the lifting winch:
    Requested tensile load in kg
    Requested wire length in m
    Hook clip
    Quantity

    Your data: Notes and remarks:
